H-13 Tool Steel For High-Temperature Tooling
H-13 is a chromium-molybdenum-vanadium hot work tool steel designed to retain strength, toughness and wear resistance under repeated heating and cooling. It is widely used for die casting, forging, extrusion and other demanding hot-work applications.
Available Forms: Round Bars | Flats | Blocks | Custom Sizes
Key Features
Built To Perform Under Heat
High-Temperature Strength
Thermal Fatigue Resistance
Excellent Toughness
Good Wear Resistance
Dimensional Stability
Air-Hardening Grade
Technical Specifications
| Property | Specification |
|---|---|
| Material | H-13 |
| Steel Type | Hot Work Tool Steel |
| AISI / SAE | H13 |
| Material No. | 1.2344 |
| UNS | T20813 |
| JIS | SKD61 |
| European Grade | X40CrMoV5-1 |
| Hardness – Annealed | Typically <230 HB |
| Heat Treatment | Air Hardening & Tempering |
| Element | Typical Range |
|---|---|
| Carbon (C) | 0.32–0.45% |
| Silicon (Si) | 0.80–1.20% |
| Manganese (Mn) | 0.20–0.50% |
| Chromium (Cr) | 4.75–5.50% |
| Molybdenum (Mo) | 1.10–1.75% |
| Vanadium (V) | 0.80–1.20% |
| Phosphorus (P) | ≤0.03% |
| Sulphur (S) | ≤0.03% |
For aluminium, magnesium and other non-ferrous die-casting applications.
Used for forging dies, inserts, punches and related hot-working tools.
Suitable for aluminium extrusion dies, backers and associated tooling.
Used where cutting tools experience elevated operating temperatures.
Suitable for punches and tooling exposed to high thermal and mechanical loads.
Can also be used for selected moulding applications requiring toughness and thermal stability.
H-13 is normally preheated and austenitized before air cooling, followed by tempering to achieve the required balance of hardness and toughness.
Controlled preheating helps reduce thermal stress before the final hardening temperature is reached.
The steel is heated to the appropriate austenitizing temperature and then air quenched.
Tempering is performed after hardening to develop the required combination of hardness, toughness and thermal stability.
Double tempering is commonly used for H13 tooling to improve stability and achieve consistent final properties.

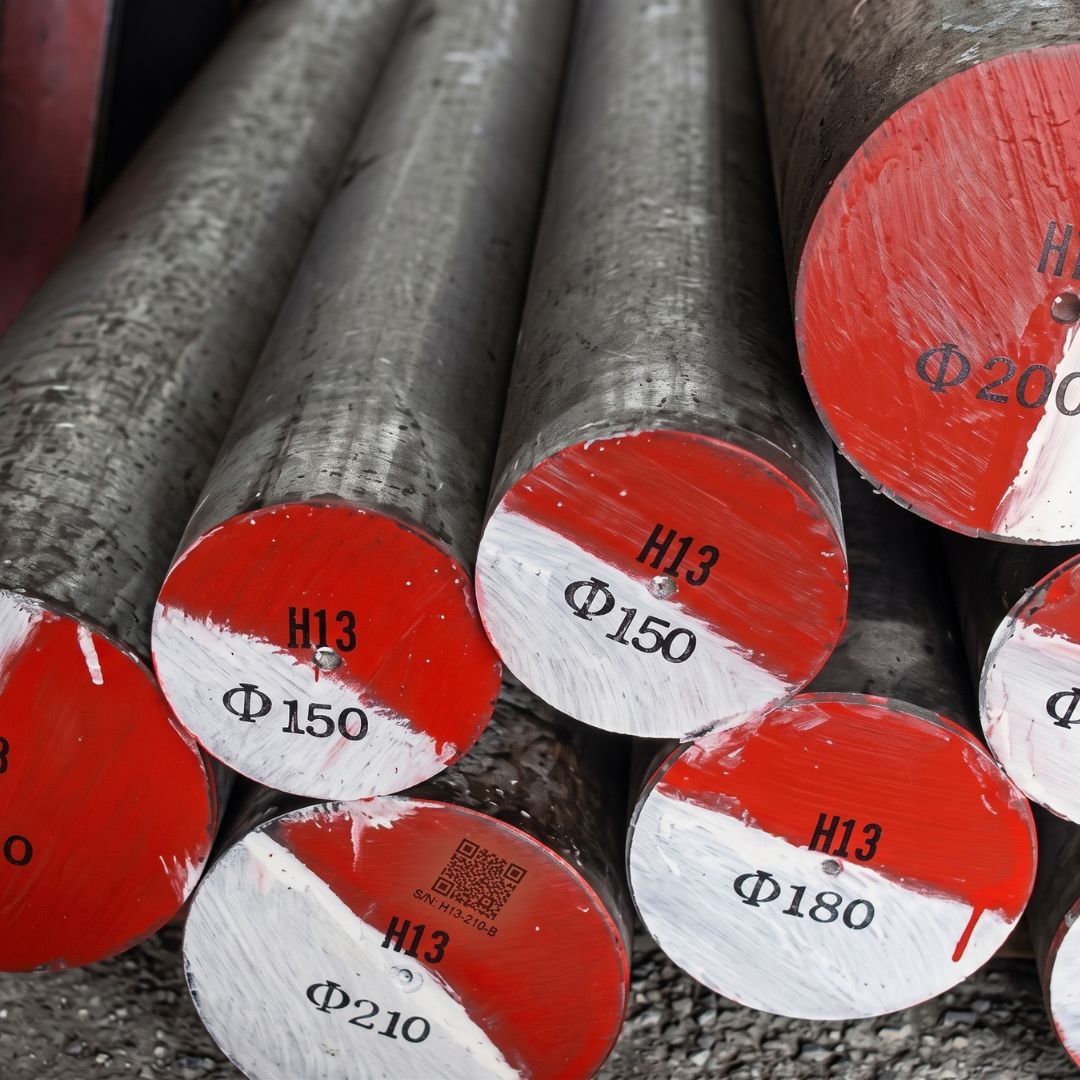

Round Bars
Flats
Blocks
Custom Sizes
TSI Metals can provide customised material preparation using its bandsaw cutting capability.
Share your requirement with our team and get the right steel solution for your application.
