D-2

Carburizing Steel For High-Performance Components

High-Wear Cold Work Tool Steel For Precision Applications. D-2 is a high-carbon, high-chromium cold work tool steel designed for precision tooling and wear-intensive applications.

Available Forms: Round Bars | Flats | Blocks | Custom Sizes

Key Features
  • Excellent performance in abrasive environments due to its high carbide content.
  • Suitable for demanding cutting, forming, and tooling applications.
  • Handles impact and compressive loads effectively.
  • Maintains tight tooling tolerances after appropriate heat treatment.
  • High carbon and chromium content provide excellent edge retention for cutting and shearing applications.
  • Suitable for applications where reduced tool regrinding and longer service life are important.
Category:

Technical Specifications

Property Specification
Material D-2
Steel Type Cold Work Tool Steel
Material No. 1.2379
Equivalent Grades X153CrMoV12 / SKD-11 / K110
Carbon (C) 1.55%
Silicon (Si) 0.30%
Manganese (Mn) 0.35%
Chromium (Cr) 12.00%
Molybdenum (Mo) 0.75%
Vanadium (V) 0.90%
Hardness After Heat Treatment HRC 58–62



Chemical Composition

Element Composition
Carbon (C) 1.55%
Silicon (Si) 0.30%
Manganese (Mn) 0.35%
Chromium (Cr) 12.00%
Molybdenum (Mo) 0.75%
Vanadium (V) 0.90%

Applications

Designed For Demanding Cold Work Tooling

  • Dies
  • Punches
  • Forming Tools
  • Shear Blades
  • Slitting Knives
  • Pelletizer Knives
  • Cutting Tools

D-2 is particularly suited to non-ferrous and mildly abrasive materials.

Heat Treatment

Built To Deliver High Hardness & Wear Resistance

D-2 is designed for heat treatment to develop the hardness and dimensional stability required for demanding cold-work tooling.

Final Hardness: Approximately HRC 58–62 after heat treatment.

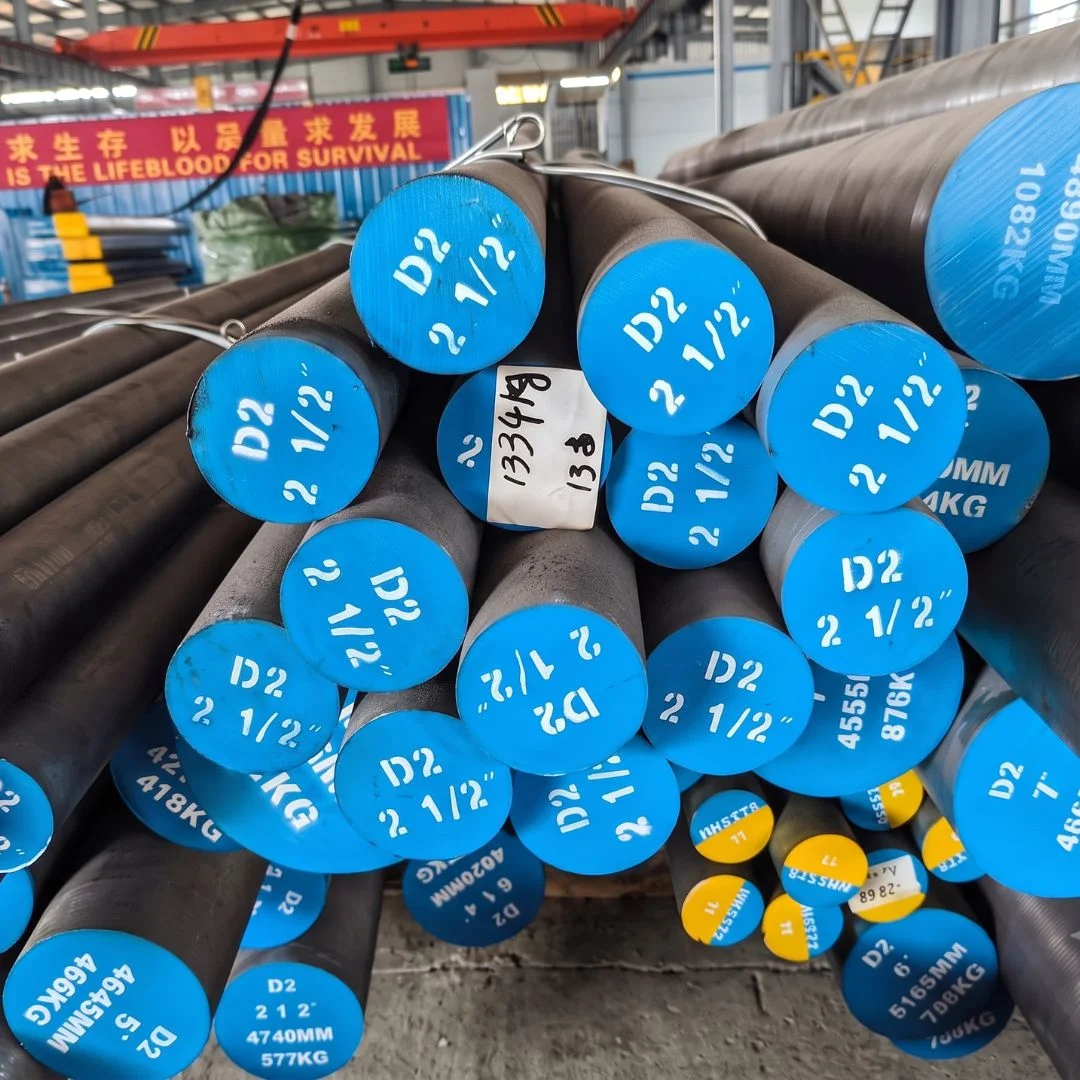

Available Forms

Available For Different Tooling Requirements

Round Bars
Flats
Blocks
Custom Sizes

Supply Condition

Choose The Condition For Your Application

  • Annealed
  • Hardened & Tempered
  • Full Length
  • Cut-to-Size

Precision Cutting Available

TSI Metals provides Horizontal, vertical, and lateral bandsaw cutting for material preparation.
